Git DRS — Quick Start

Git DRS extends Git LFS to register and retrieve large data files from DRS-enabled platforms while keeping the familiar Git workflow. Use Git LFS for file tracking, fetching, and local cache management. Use Git DRS to configure the DRS server connection and manage cloud-backed object references for your repository.

Relationship to Git LFS

git-drs is built on top of Git LFS. It uses the same clean and smudge filter architecture, the same .gitattributes tracking patterns, and a compatible pointer file format. If you already know git lfs track and git lfs pull, the git drs equivalents will feel natural.

Prerequisites

Before installing Git DRS, you need Git and Git LFS installed and configured on your system.

Install Git

Visit https://git-scm.com to download and install Git for your operating system.

Install Git LFS

Install using Homebrew

brew install git-lfs

Install via Package Manager

sudo apt-get install git-lfs

sudo yum install git-lfs

sudo dnf install git-lfs

Download and Run Installer

Download the latest Git LFS Windows installer and follow the setup instructions.

Initialize Git LFS

Run the following command in your terminal to complete the setup:

git lfs install --skip-smudge

Tip

The --skip-smudge option prevents automatic downloading of all LFS files during clone/checkout, giving you control over which files to download.

For more details, see Getting Started with Git LFS on GitHub Docs.

Install Git DRS

Use the project installer after Git LFS is installed:

/bin/bash -c "$(curl -fsSL https://raw.githubusercontent.com/calypr/git-drs/refs/heads/main/install.sh)" -- $GIT_DRS_VERSION

Update PATH

Ensure git-drs is on your path:

echo 'export PATH="$PATH:$HOME/.local/bin"' >> ~/.bash_profile
source ~/.bash_profile

Download Gen3 API Credentials

To use Git DRS, you need to configure it with API credentials downloaded from the Profile page.

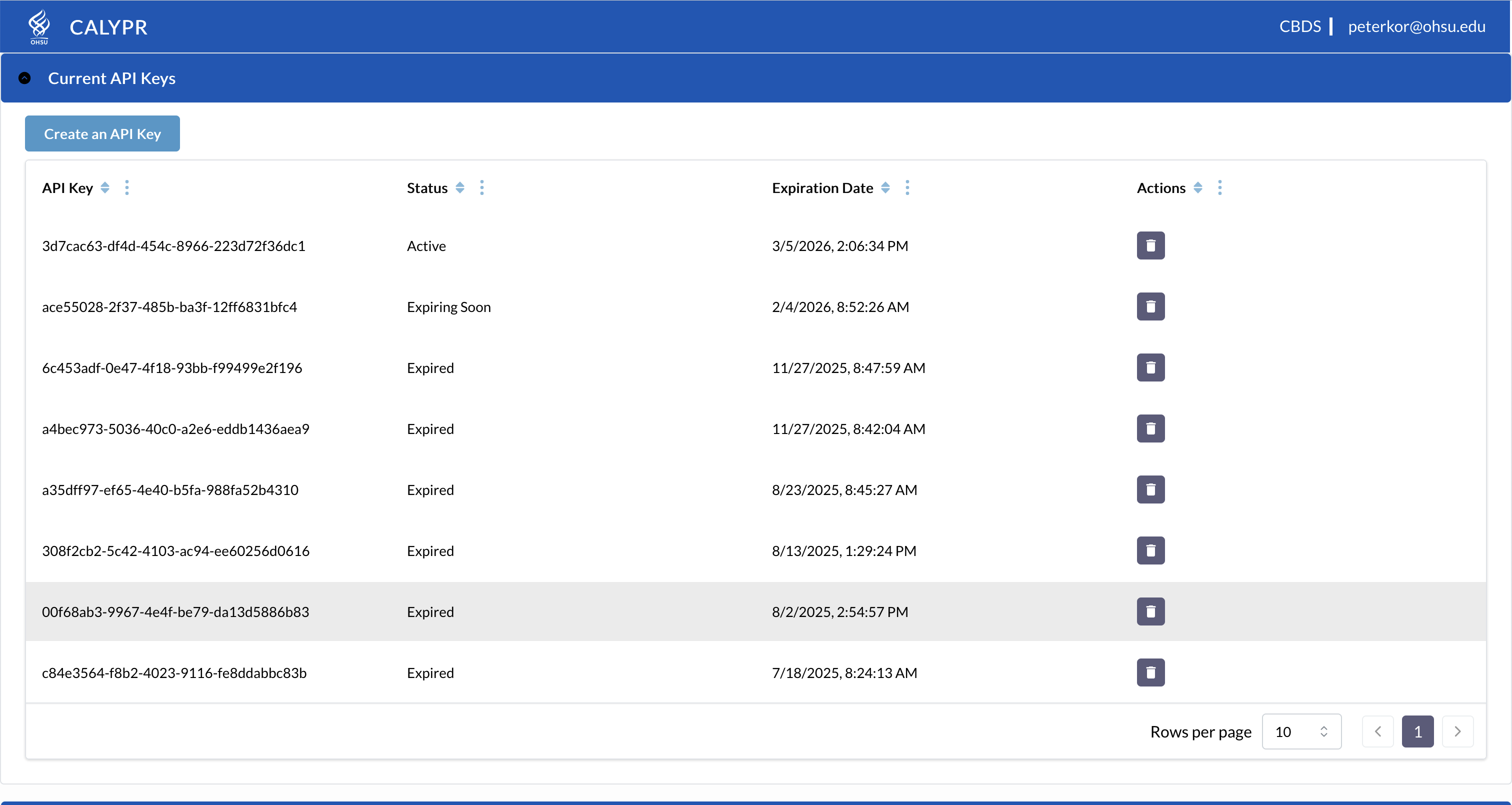

Gen3 Profile page

  1. Log into the Gen3 data commons at https://calypr-public.ohsu.edu/
  2. Navigate to your Profile page
  3. Click "Create API Key"

Gen3 API Key

  1. Download the JSON credentials file

Gen3 Credentials

  1. Save it in a secure location (e.g., ~/.gen3/credentials.json)

Credential Expiration

API credentials expire after 30 days. You'll need to download new credentials and refresh your Git DRS configuration regularly.

New Repository Setup

If you're creating a new project or setting up a repository for the first time:

1. Clone or Create Repository

git clone https://github.com/your-org/your-data-repo.git
cd your-data-repo

Or create a new repository:

mkdir MyNewCalyprProject
cd MyNewCalyprProject
git init

2. Initialize Git DRS

git drs init

This configures Git hooks and prepares the repository for DRS-backed files — similar to running git lfs install at the repo level.

3. Get Project Details

Contact your data coordinator at support@calypr.org for:

  • DRS server URL (e.g., https://calypr-public.ohsu.edu)
  • Project ID (format: <program>-<project>)
  • Bucket name

4. Add Remote Configuration

git drs remote add gen3 production \
    --cred /path/to/credentials.json \
    --url https://calypr-public.ohsu.edu \
    --project my-project \
    --bucket my-bucket

Note

Since this is your first remote, it automatically becomes the default. No need to run git drs remote set.

5. Verify Configuration

git drs remote list

Output:

* production  gen3    https://calypr-public.ohsu.edu

The * indicates this is the default remote.

Directory Structure

An initialized project will look something like this:

<project-root>/
├── .gitattributes
├── .gitignore
├── META/
│   ├── ResearchStudy.ndjson
│   ├── DocumentReference.ndjson
│   └── <Other FHIR>.ndjson
├── data/
│   ├── file1.bam
│   └── file2.fastq.gz

Track, Add, Commit, and Push

Track Large Files with Git LFS

Use Git LFS to select which files should be stored as LFS objects. Git DRS works with the tracking patterns you configure via Git LFS:

git lfs track "*.bam"
git add .gitattributes
git commit -m "Track BAM files with Git LFS"

For more details, see the Git LFS tracking documentation.

Add, Commit, and Push Data

Once files are tracked with Git LFS, use standard Git commands to add and commit. During git push, Git LFS uploads large objects to the LFS server while Git DRS automatically registers them with the configured DRS server via its pre-push hook.

# Add your file
git add myfile.bam

# Verify LFS is tracking it
git lfs ls-files

# Commit and push
git commit -m "Add data file"
git push

What Happens Behind the Scenes

The git push triggers Git LFS transfer hooks. Git DRS intercepts this flow to register each LFS object with your DRS server (e.g., gen3/indexd), making the file discoverable via DRS IDs. You don't need to run any extra commands. The process:

  1. Git DRS creates DRS records for each tracked file
  2. Files are uploaded to the configured S3 bucket
  3. DRS URIs are registered in the Gen3 system
  4. Pointer files are committed to the repository

For background on the Git LFS transfer flow, see the Git LFS overview and the Git LFS push documentation.

Download Files

Use Git LFS to download files on demand:

# Download all files
git lfs pull

# Download specific pattern
git lfs pull -I "*.bam"

# Download specific directory
git lfs pull -I "data/**"

Refer to the Git LFS pull documentation for filters and options.

Check Status and Tracked Files

To see which files are tracked and their status, rely on Git LFS tooling:

git lfs ls-files

The Git LFS ls-files documentation explains the available flags and output format.

Clone an Existing Repository

When you clone a repository that already uses Git DRS, the repo will contain small pointer files instead of full file content. You need to install Git DRS, initialize it in the clone, configure the DRS remote, and then pull file content.

Step 1 — Clone the Repository

Clone as you normally would. Git LFS pointer files are checked out automatically, but large file content is not downloaded yet.

git clone https://github.com/your-org/your-data-repo.git
cd your-data-repo

Skip LFS Downloads During Clone

If you want to skip downloading any LFS content during clone (useful for large repos), use the GIT_LFS_SKIP_SMUDGE environment variable:

GIT_LFS_SKIP_SMUDGE=1 git clone https://github.com/your-org/your-data-repo.git

See git lfs install --skip-smudge for details.

Step 2 — Initialize Git DRS

Run git drs init inside the cloned repo to configure the DRS hooks and filters:

git drs init

Step 3 — Configure the DRS Remote

Set up the DRS server connection. Your team or project documentation should provide the server URL, credentials, project, and bucket:

git drs remote add gen3 production \
    --cred /path/to/credentials.json \
    --url https://calypr-public.ohsu.edu \
    --project my-project \
    --bucket my-bucket

Note

This step is required even if the original repository author already configured a DRS remote — remote configurations are local to each clone and are not committed to Git.

Step 4 — Pull File Content

Download the actual file content using Git LFS:

# Pull all LFS-tracked files
git lfs pull

# Or pull specific files by pattern
git lfs pull -I "*.bam"

Refer to the Git LFS pull documentation for filters and options.

Step 5 — Verify

Confirm that pointer files have been replaced with full content and that DRS-tracked files are recognized:

git lfs ls-files

A * next to a file indicates its content is present locally. A - means only the pointer is checked out.

Quick Reference

# Full clone workflow — copy and paste
git clone https://github.com/your-org/your-data-repo.git
cd your-data-repo
git drs init
git drs remote add gen3 production \
    --cred /path/to/credentials.json \
    --url https://calypr-public.ohsu.edu \
    --project my-project \
    --bucket my-bucket
git lfs pull
git lfs ls-files

Managing Remotes

Add Multiple Remotes

You can configure multiple DRS remotes for working with development, staging, and production servers:

# Add staging remote
git drs remote add gen3 staging \
    --cred /path/to/staging-credentials.json \
    --url https://staging.calypr.ohsu.edu \
    --project staging-project \
    --bucket staging-bucket

# View all remotes
git drs remote list

Switch Default Remote

# Switch to staging for testing
git drs remote set staging

# Switch back to production
git drs remote set production

# Verify change
git drs remote list

Remove a Remote

If a remote is no longer needed, remove it by name:

git drs remote remove staging

After removal, confirm your remaining remotes:

git drs remote list

Warning

If you remove the default remote, run git drs remote set <name> to pick a new default before pushing or fetching.

Cross-Remote Promotion

Transfer DRS records from one remote to another (e.g., staging to production) without re-uploading files:

# Fetch metadata from staging
git drs fetch staging

# Push metadata to production (no file upload since files don't exist locally)
git drs push production

This is useful when files are already in the production bucket with matching SHA256 hashes. It can also be used to re-upload files given that the files are pulled to the repo first.

Command Quick Reference

Action Command
Initialize git drs init
Add remote git drs remote add gen3 <name> --cred...
View remotes git drs remote list
Set default git drs remote set <name>
Remove remote git drs remote remove <name>
Track files git lfs track "pattern"
Check tracked git lfs ls-files
Add files git add file.ext
Commit git commit -m "message"
Push git push
Download git lfs pull -I "pattern"
Fetch from remote git drs fetch [remote-name]
Push to remote git drs push [remote-name]
Query DRS object git drs query <drs-id>
Check version git drs version
